Manual J is the Air Conditioning Contractors of America (ACCA) procedure for calculating how much heating and cooling a house needs at design weather, reported in BTU/h for the whole system and for each room. It tells you the load. It does not pick the air conditioner or furnace (that is Manual S) or size the ducts (Manual D). The current residential edition is the 8th, and it applies to single-family detached homes, low-rise condominiums, and townhouses.
What a Manual J result looks like
The U.S. Department of Energy's Building America program published the Manual J results for a modeled one-story, 2,223 ft² house in Chicago, built to the 2009 IECC. They make a clean sample of what a report summarizes.
| Report line | Chicago example house | What it tells you |
|---|---|---|
| Heating | 41,660 BTU/h | Winter heat the system must deliver at the winter design temperature |
| Sensible cooling | 17,370 BTU/h | Heat that raises air temperature |
| Latent cooling | 3,240 BTU/h | Moisture removal, in heat terms |
| Total cooling | 20,610 BTU/h | Sensible plus latent; 20,610 ÷ 12,000 = 1.72 tons of load |
| Sensible heat ratio | 0.84 | 17,370 ÷ 20,610; a low ratio would signal a big moisture load |
Per square foot, that is 18.7 BTU/h of heating (41,660 ÷ 2,223) and 9.3 of cooling (20,610 ÷ 2,223). Those ratios differ from house to house, which is the reason a per-area rule cannot replace the calculation. BTU/h is a rate; the report does not predict fuel use or a monthly bill.
Common questions
What goes into the calculation?
| Input group | What to verify |
|---|---|
| Design conditions | Weather station, indoor targets, outdoor temperature and moisture |
| Envelope | Surface areas, assemblies, windows, doors, orientation, and shading |
| Outdoor air | Infiltration method, leakage-test conversion, ventilation and recovery |
| Internal gains | Occupancy and appliance assumptions the method prescribes |
| Distribution | Duct location, insulation, and leakage assumptions |
Whole-assembly U-factors cover more than the cavity insulation. Window U-factor describes conduction and SHGC describes solar gain. People add both sensible and latent heat. A blower-door reading at 50 pascals measures leakage at test pressure, not normal hourly air exchange, and mechanical ventilation needs its own line, including any heat-recovery device. Start from the conditioned boundary and not the listing square footage; how to measure your home walks through it.
Is it just a formula?
The pieces are simple, such as conduction Q = U × A × ΔT and air loads of 1.08 × CFM × ΔT, but the procedure supplies the tables, solar and storage treatment, and the way terms are combined, and the formulas article shows the hand-checkable parts. A software printout headed Manual J does not prove the house was entered correctly, so ask for the input summary.
Why does the weather matter so much?
The calculation uses selected local design conditions, not the hottest and coldest temperatures ever observed. An IECC climate zone is too broad to stand in for them. Ask which weather station was used, especially if the house is at a different elevation or exposure than the nearest major city. See design temperatures explained.
What are the pages of a report?
| Section | What it lists | Why you care |
|---|---|---|
| Project and design conditions | Address, station, indoor and outdoor temperatures, humidity | A different station or indoor target changes every later number |
| Construction and openings | Walls, ceilings, floors, windows with area, orientation, shading | A missing window or wrong insulation level hides here |
| Infiltration and ventilation | Leakage rate or tightness category, ventilation, recovery | Often the most uncertain input |
| Internal gains and ducts | People, appliances, duct location and leakage | Attic ducts can add a large share of cooling load |
| Results | Heating, sensible and latent cooling, by room and system | The numbers equipment is compared with |
| Equipment summary | Required airflow and sometimes a capacity check | Shows the report carried through to a selection |
Block load or room loads?
A whole-system block load supports equipment selection; room loads support airflow and duct design. Room peaks and the coincident block peak can differ, and software may allocate duct or ventilation loads differently, so room totals that do not sum exactly to the block total call for an explanation from the designer, not an automatic rejection. A sunny west bedroom and a shaded interior room can share a floor area and need different airflow; swapping in a bigger central unit cannot promise the bedroom its share.
Which situation needs which document?
| Situation | What to ask for |
|---|---|
| Replacing an air conditioner or furnace | Heating, sensible, and latent loads, plus the capacity comparison for the exact new models |
| Adding a room or finishing a basement | A calculation stating whether the space joins the existing system or gets its own, and room loads for duct changes |
| Air sealing, insulation, or window upgrades | Two scenarios, the house today and after the work, so equipment fits the improved envelope |
| Chronic hot or cold rooms | Room-by-room loads and measured airflow; a block load cannot locate the problem |
| Permit or rebate application | The format and signatory the local office or program specifies, confirmed in advance |
Permit and rebate rules depend on the code edition, local adoption, and program, and a software export is not a professional stamp. Settle the deliverables before paying: who surveys the house, who resolves unknown insulation or leakage, and whether revisions for planned renovations are included. An HVAC contractor, residential designer, or energy rater can perform the calculation, but acceptance depends on the project's requirements.
What comes after Manual J?

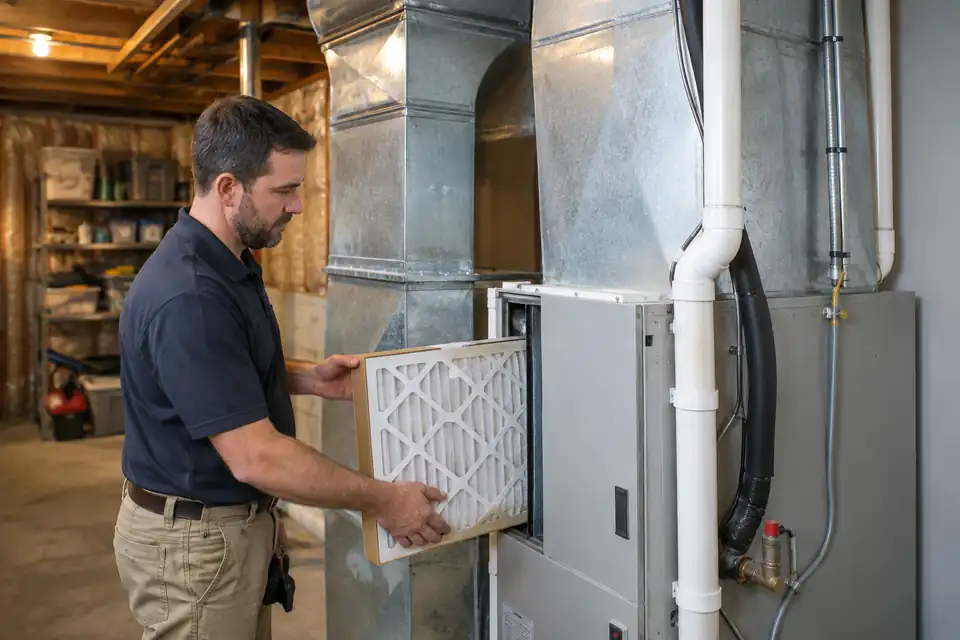

Manual S compares the loads with a specific system's manufacturer data, and Manual D sizes the ducts for the selected blower and design airflow. Installation then confirms airflow and controls match the design. See Manual J vs S vs D for a house carried through all three. A nominal 2.5-ton label is not evidence that a system meets a 30,000 BTU/h load, and a furnace's input number is not its useful output. Oversizing is the failure this paperwork prevents, and its symptoms are in the oversized AC guide.
Is this site's calculator a Manual J?
No. The free Manual J-style calculator gives a simplified planning estimate; it is not ACCA-approved software and not a certified room-by-room report. Use it to learn the inputs and prepare questions. A gap between it and a contractor's report is a reason to compare assumptions, not proof that either number is wrong.
- Before ordering, request the input documentation, load summaries, and equipment capacity comparison.
- If two estimates disagree, line up area, weather, window area and orientation, assemblies, outdoor airflow, and duct location before comparing totals, and do not average them.
- For unusual construction, large glass areas, zoning, or renovations, have a qualified designer settle the inputs. The report review guide covers the document you receive.
