What Is HVAC Load Calculation?
By Danish Javaid, founder & editor · Published · Updated
An HVAC load calculation estimates the heating and cooling a building needs at specified indoor and outdoor design conditions. The result is a rate of heat transfer in BTU/h, not the amount of energy used over a month. It is the starting point for equipment selection and room airflow design.
Three load numbers to request
| Result | What it represents | What it helps select |
|---|---|---|
| Heating load | Heat needed to replace design-day losses | Furnace output or heat-pump heating capacity |
| Sensible cooling load | Heat removal that lowers air temperature | Coil sensible capacity and room airflow |
| Latent cooling load | Heat removal associated with moisture | Coil moisture-removal capacity |
Total cooling load is sensible plus latent load. A hypothetical report showing 24,000 BTU/h sensible and 6,000 BTU/h latent has a total of 30,000 BTU/h. Its sensible heat ratio is 24,000 ÷ 30,000 = 0.80. That split matters: equipment with sufficient total capacity can still fall short on moisture removal.
Heating load and cooling load are separate calculations
A home has two design loads, and they are rarely equal. The cooling load is the heat that must be removed on a design summer afternoon. The heating load is the heat that must be added on a design winter night. A well-insulated house in Phoenix may have a large cooling load and a small heating load, while a similar house in Minneapolis is the reverse. Because one system often serves both seasons, each load is calculated independently and the equipment is then checked against both. The dominant season usually decides which number governs the selection.
Sensible versus latent heat
Sensible heat is the part you can measure with a thermometer: sunlight through a window, a warm wall, a running oven. Latent heat is the energy carried by water vapor. Condensing that vapor on the cold coil takes real cooling capacity even though the thermostat reading does not move. This is why air conditioner sizing is harder than furnace sizing, and why a unit that cools quickly can still leave a house humid. Both parts follow simple air-side relationships:
Q is in BTU/h, CFM is airflow, ΔT is the dry-bulb temperature difference in °F, and Δgrains is the difference in moisture content in grains of water per pound of dry air. Both constants assume standard air near sea level.
For example, 100 CFM of outdoor air at 20°F above the indoor temperature adds 1.08 × 100 × 20 = 2,160 BTU/h of sensible load. If that air also carries 50 grains/lb more moisture than the indoor air, the latent load is about 0.68 × 100 × 50 = 3,400 BTU/h. In humid climates, ventilation air can add more latent than sensible load, which is why ventilation belongs in the calculation rather than being treated as an afterthought.
BTU, BTU/h, tons, and watts
A BTU is energy; BTU/h is a rate. One refrigeration ton equals 12,000 BTU/h, so the example above is 2.5 tons of cooling load. This conversion does not automatically select a nominal 2.5-ton unit. Actual capacity depends on the matched indoor coil, outdoor conditions, indoor humidity, and airflow.
These convert thermal power. A heat pump's electrical input in watts is not its heating or cooling output.
A 500 W device releasing all its electrical input as heat inside the room contributes approximately 500 × 3.412 = 1,706 BTU/h while operating. Monthly kWh on a utility bill cannot be substituted for this peak heat-gain rate.
Where the load comes from
- Envelope conduction: heat transfer through walls, windows, doors, ceilings, and floors. Record each assembly and the space on its other side.
- Solar gain: sunlight through glass and solar effects on exterior surfaces. Orientation, glazing, and shading affect the timing and size of the cooling peak.
- Outdoor air: uncontrolled infiltration and intentional ventilation add temperature load and, during humid weather, moisture load. A drafty older home can carry several times the infiltration load of a tight new one, so leakage assumptions can move the result more than square footage does.
- Internal gains: people, appliances, and lighting contribute sensible heat; people and activities such as cooking can also contribute moisture. Manual J commonly assigns each occupant about 230 BTU/h sensible and 200 BTU/h latent, so counting people only as sensible heat understates the humidity load.

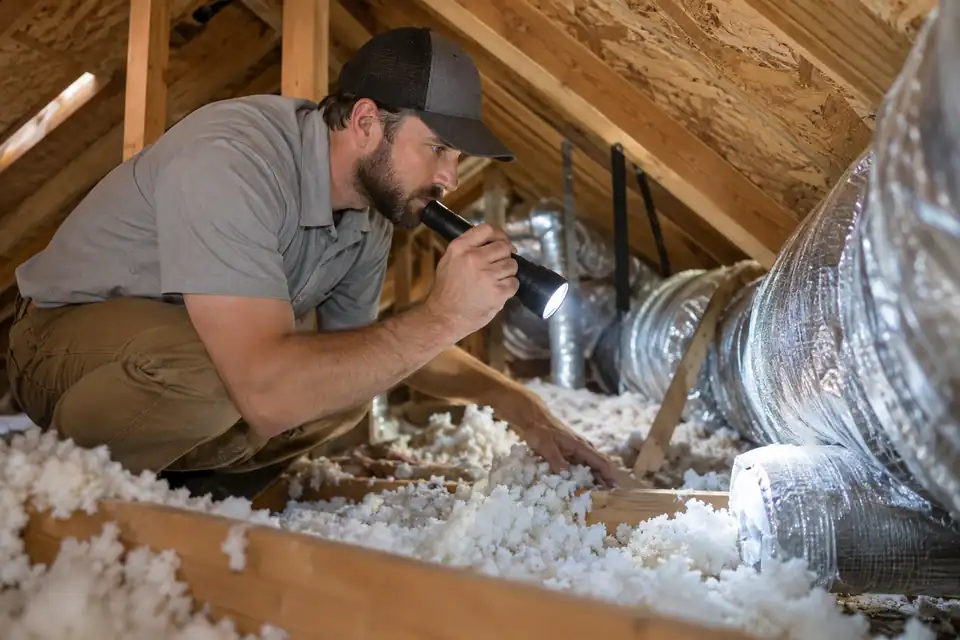

- Distribution: ducts outside the conditioned boundary can add gains or losses. Their location, leakage, and insulation belong in the calculation.
Winter heating calculations generally do not rely on sunshine or occupant gains to cover design heat loss. Those gains may disappear at the hour heat is needed. Use the load method's heating procedure rather than subtracting summer internal gains from the winter result.
In summer the signs are reversed for most of these terms: conduction, solar gain, outdoor air, and internal gains all add heat that the coil must remove. In winter, conduction and air leakage are the main losses, so the heating load in an HVAC load calculator estimate is driven mostly by the envelope and by leakage.
Load is not energy use
A load calculation answers “how large must the equipment be at the design hour?” It does not answer “how much will I pay this year?” Annual energy use depends on how many hours the system runs, at what efficiency, and at what utility rates. Two homes with the same peak load can have very different bills. Conversely, a bill cannot be used to back into the peak load, because the peak occurs only a handful of hours a year. A tonnage or BTU figure describes capacity, not consumption.
Design conditions are selected weather conditions
Residential calculations commonly use local 1% cooling and 99% heating dry-bulb design conditions, with appropriate moisture conditions for cooling. These are weather-frequency values, not record extremes and not one temperature assigned to every home in an IECC climate zone. Ask which weather station and indoor targets were used.
Indoor targets matter too. Many reports use about 75°F and roughly 50% relative humidity for cooling and around 70°F for heating. The heating load scales roughly with the indoor-to-outdoor temperature difference, so a report that quietly assumes 72°F instead of 70°F is not directly comparable to one that does not. When you compare two calculations, compare the design conditions first, then the envelope inputs, and only then the totals. The design temperature guide explains how those values are chosen.
What a homeowner should collect
- A floor plan showing conditioned rooms, dimensions, ceiling heights, and which system serves each room.
- Window dimensions, compass directions, U-factors, solar heat gain coefficients, and shading.
- Construction details for the envelope, evidence of insulation, leakage test records if available, and ventilation equipment details.
- Duct location and planned envelope improvements, such as new windows or air sealing.
Why correct sizing matters
A bigger system is not automatically a safer one. Oversizing and undersizing both cause comfort problems, but they look different.
| Condition | What can go wrong |
|---|---|
| Oversized | Short run times. The unit may reach the setpoint before it has removed much moisture, so the house can feel cool and clammy. Expect more starts and stops, and more airflow than the ducts were built for. |
| Undersized | Long run times and difficulty holding the setpoint on the hottest or coldest days, which is when comfort matters most. |
| Close to the calculated load | Longer, steadier cycles that handle both temperature and humidity and usually keep room-to-room differences smaller. |
Rule of thumb versus Manual J
You will often hear “one ton per 400 to 600 square feet.” Treat it as a rough screening range, not a design value. It ignores climate, insulation, window area, sun exposure, ceiling height, and air leakage, which are the things that make two homes with the same floor area need different equipment. The tonnage per square foot guide shows how wide the real range is.
What Manual J adds
ACCA Manual J is the residential method most jurisdictions reference. It works through each room and each envelope assembly, applies the selected design conditions, and separates sensible from latent load. Many building departments and incentive programs now ask for the report before issuing a permit or rebate. The Manual J overview covers what the report contains, and the Manual J calculator gives a preliminary estimate using the same structure.
Common misunderstandings
- “Tons are square footage.” A ton is 12,000 BTU/h of heat removal. It has no direct relationship to floor area without a load calculation.
- “Peak load equals nominal equipment size.” Nominal size is a catalog label. Delivered capacity at your design conditions is what Manual S compares to the load.
- “The old unit's size is the answer.” The old unit may have been oversized, and insulation, windows, or air sealing may have changed since it was installed.
- “Heating and cooling loads should match.” They are calculated from different conditions and are often far apart. A heat pump sized for cooling may be short in heating, or the reverse.
Use the HVAC load calculator for a preliminary estimate. For an equipment purchase, ask for a documented residential calculation using ACCA Manual J, 8th edition, then equipment selection using Manual S. A quick estimate cannot certify a contractor's proposed size. The report checklist explains what to check before accepting the result.
